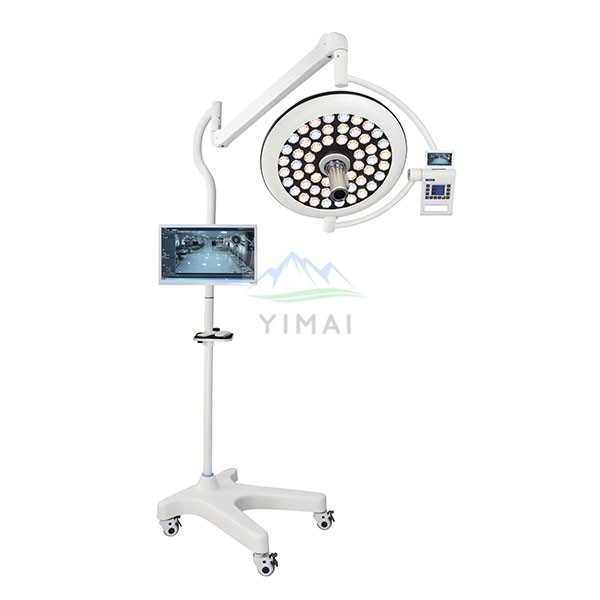

Operating lamp Mobile version Built in camera and External display

Technical Parameters LED500
Illumination (Lux) 30,000-160,000Lux
Lamp Bulb Quantity 54
Bulb Type LED
Bulb Average Life ≥80,000h
Color Temp (K) 3700K ~5000K
Color Rendering Index (CRI) 85~98
Illumination Depth(mm) 50-180cm
Facular Diameter(mm) 120-280mm
Dimming Control 1%-100%
Bulb Power 54
Temp Rise (doctor head) ﹤1℃
Input Power AC100-240V  50/60HZ

EMAIL

Product features:

1、Ideal cold light effects.

Using the new LED cold light source, energy saving and environmental protection and long service life up to 80,000hours or more. Temperature increase over surgeon’s head﹤1℃

LED do not engender infrared ray and ultraviolet radiation, it doesn’t have the temperature rise and tissue damage caused by halogen shadowless light, can accelerate the wound healing after surgery, and has no Radiation pollution.

LED color temperature constant, soft, very close to the natural sun light.

2、Excellent shadowless effect

The lamp head adopts the most scientific curvature, with built-in eight zones, molded, and multi-point light source design. The light spot adjustment is flexible, making the light spot illumination more uniform. When the surgical lamp is partially blocked, it can also achieve a perfect shadowless effect.

Lamp panel radius of gyration: ≥182cm, the lamp can be pulled to vertical floor, convenient to any angle illumination.

3、Excellent deep lighting

Adopting computer-aided modular design, multiple LED light columns are focused for illumination, generating a depth of illumination of over 1200 millimeters of light columns. The central illumination can reach up to 180000 lux or more, and provides a color adjustable temperature of 3700K-5000K that is close to natural sunlight, truly reflecting the color of human tissues, fully meeting various surgical lighting needs.

4、Advanced control system

Adopting LCD display button control, it can adjust power switch, illumination, color temperature, etc. to meet the requirements of medical staff for different patient surgical brightness.

Digital memory function, automatically remembers the appropriate lighting level, and does not require debugging when turned on again.

Multiple centralized control methods with the same power and multiple groups, ensuring that single LED damage does not affect surgical lighting requirements.

5、Universal suspension system

The radius of the lamp disc: 182cm, the lamp head can be pulled close to the vertical ground to facilitate the lighting of various angles.

Balanced system using imported arm module, more than 5 group universal joints, every cantilever must has more than 3 joints which can be rotated in 360 , The structure is light, easy to manipulate, accurate positioning, can provide the maximum range of regulation.

The base adopts four-wheel support, high-grade silent universal caster, equipped with brake device, play a fixed role, movement and positioning flexible, light, stable, safe, reliable, no noise.

6、Modern laminar lamp

Circular ultra-thin design, with the thickest part not exceeding 10cm, can achieve excellent laminar flow effect.

The lampshade shell is made of imported aluminum material, and the middle handle of the lamp head is detachable. It can withstand high temperature and high pressure disinfection at 134 ℃, making it easy to adjust and flexibly locate.

7、Center camera system

The SDI central camera is designed specifically for capturing clinical processes. Using high-quality sensors, it can be used in various environments such as ordinary lighting and shadowless lamps, with clear images and high restoration. Support panel and OSD menu, with simple and convenient adjustment functions. Central camera with operation buttons and wireless remote control.

8、Recording and display terminal

The high-definition recording and display terminal comes with a 22 inch 1080P LCD display screen, which is used for local video input display and IPC decoding display. It integrates functions of video and audio access, encoding, storage, decoding, display, and local interface operation, meeting the needs of high-quality video and audio recording and decoding display. The product adopts a built-in hard drive design, so there is no need to disassemble the hard drive, which is more convenient. Adopting high-quality AAC audio encoding technology, supporting 1-in-1 audio output, and equipped with stereo speakers; Support infrared remote control operation control.
